Overview
Bringing Edge performance closer than ever

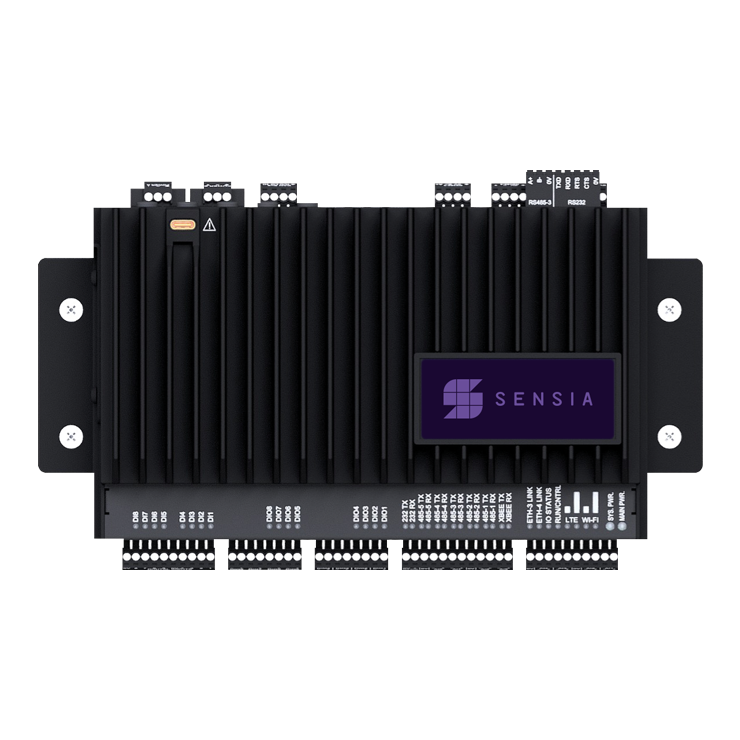

QRATE HCC2 stands apart from competition in a landscape where remote automation is key to reliable operation.
It combines a dedicated RTU controller with a modern IoT Edge processor and LTE communication to provide control of equipment and optimize its performance. The result is a robust, secure, flexible and scalable edge controller platform.
Specifications
Best-in-class performance as standard
By capturing real-time data, QRATE HCC2 enables the control and optimization of processes – alongside the automation of remote assets – to deliver best-in-class Edge performance in some of the world’s harshest environments.
No matter where your operation takes you, you can rely on QRATE HCC2 to maximize existing asset performance, manage operational risk and leverage real-time data to inform smarter decisions. Reducing safety risks with fewer trips to the field and dramatically improving your quality of work. From edge, to enterprise, and beyond.
Powerful Edge Computing Platform
Develop custom Docker applications that allow you to harness the real time data in the QRATE HCC2 and unlock additional insights into the performance of equipment and processes. Application developers benefit from the enhanced security and integrated data platform. Begin developing custom applications today!
Click below to visit the Software Development Kit Documentation, or visit the GitHub repository.
Key features include:
RTU Model Features
- Dedicated ARM microcontroller Rockwell Automation ISaGRAF IEC 61131-3 environment
- Embedded I/O: 8x AI, 8x DI, 8x DIO, 2x AO
- Serial Comms: 1x RS232, 5x RS485
- Ethernet: 2x embedded switch ports, 2x Gb/s ports
- USB: 2x USB 2.0
- GNSS receiver for time synchronization
- HDMI port – used for Edge application touch interface
- Unity Edge online configuration tool
Wireless Option Features
Includes the following factory additions:
Edge Enablement Features
Upgrade an RTU model and enable edge services to:
- Run custom Docker containers
- Centralized Management of OS and Applications
Download HCC2 Software and Updates
QRATE HCC2 software downloads are available via the Microsoft Azure Storage Explorer. Instructions to download and connect to the Azure Storage Explorer are located in Knowledge Article KA-04676. You will be required to register to access the Knowledge Article, the registration form can be found here Customer Support Portal Registration.
