Bringing Edge performance closer than ever
QRATE HCC2 stands apart from competition in a landscape where remote automation is key to reliable operation.
It combines a dedicated RTU controller with a modern IoT Edge processor and LTE communication to provide control of equipment and optimize its performance. The result is a robust, secure, flexible and scalable edge controller platform.
Best-in-class performance as standard
By capturing real-time data, QRATE HCC2 enables the control and optimization of processes – alongside the automation of remote assets – to deliver best-in-class Edge performance in some of the world’s harshest environments.
No matter where your operation takes you, you can rely on QRATE HCC2 to maximize existing asset performance, manage operational risk and leverage real-time data to inform smarter decisions. Reducing safety risks with fewer trips to the field and dramatically improving your quality of work. From edge, to enterprise, and beyond
The key to unlocking your Edge potential

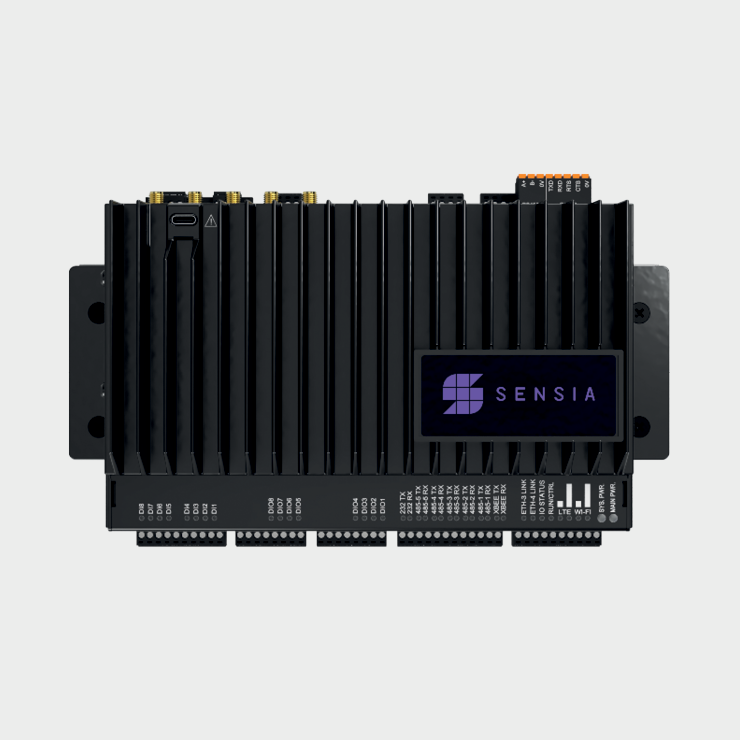

Combining an edge computer, real-time processor, industrial IO, GPS, cellular modem, Wi-Fi, and an ethernet switch into one rugged platform – the QRATE HCC2 is capable of providing control and analysis for remote equipment. Check out the product page for more technical details and to access manuals, and software downloads.
Key features include:
ERTU Model Features
- Dedicated ARM microcontroller Rockwell Automation ISaGRAF IEC 61131-3 environment
- Embedded I/O: 8x AI, 8x DI, 8x DIO, 2x AO
- Serial Comms: 1x RS232, 5x RS485
- Ethernet: 2x embedded switch ports, 2x Gb/s ports
- USB: 2x USB 2.0
- GNSS receiver for time synchronization
- HDMI port – used for Edge application touch interface
- Unity Edge online configuration tool
- Light Update Tool – Remote OS and Application updates
Wireless Option Features
- Includes the following factory additions:
- 4G LTE Modem
- Wifi
Edge Enablement Features
- Upgrade an RTU model and enable edge services to:
- Run custom Docker containers
- Centralized Management of OS and Applications
Effortless legacy integration. Future-proof flexibility. Enabled by Avalon.
Enabled by our open Avalon digitalization platform, the QRATE HCC2 has been created with secure infrastructure integration in mind. It enables edge-based analytics that will provide new real time insights for Avalon customers, wherever they are in their digitalization journey.
More about Avalon.png)

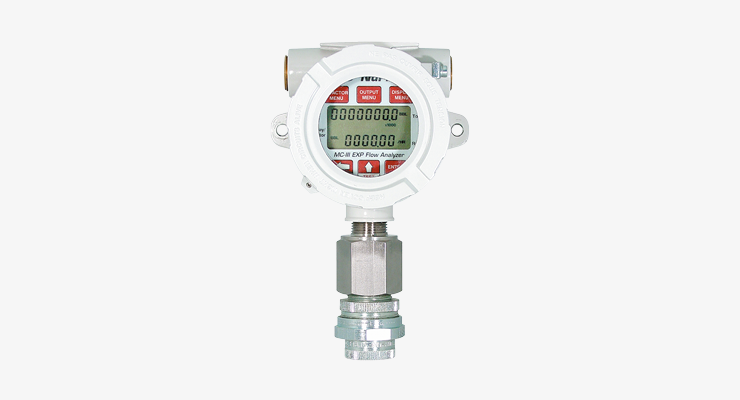

Totalizers
Get turbine measurement signal where needed with measurement results provided in the preferred format.
Find out more.png)

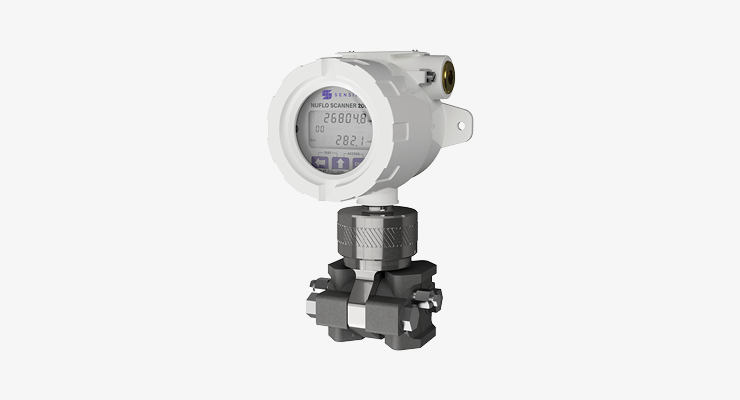

Scanner 2000
Simplicity and efficiency meet scalability and adaptability to provide a range of measurement, monitoring, and control applications on an enduring internal energy source.
Find out more.png)

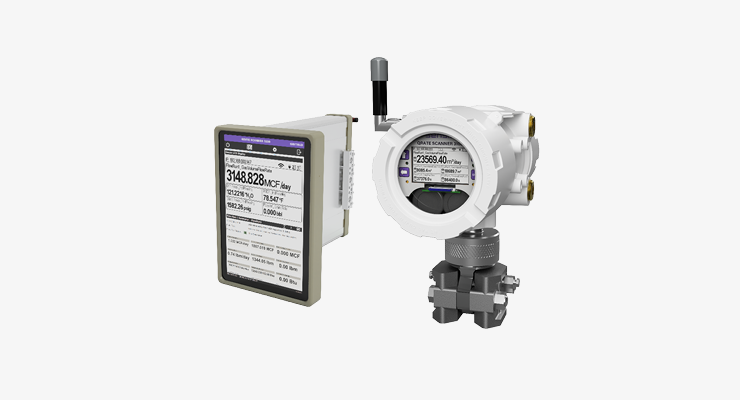

Scanner 3000
High precision. Minimal automation. The QRATE Scanner 3000 series flow computers come field ready with easy pre-deployment configurability.
Find out more
