Overview
The JISKOOT line of In-Line Sample Probes are a rugged and flexible solution for all of your sampling needs. Whether it is the lightest of condensates, or an 8000 cSt bitumen, JISKOOT has an In-Line Sample Probe for any of your challenging sampling applications. When paired with any of the JISKOOT In-Line Probe Accessories, it ensures that your probe will operate in the most challenging of process or environmental applications.
.png)

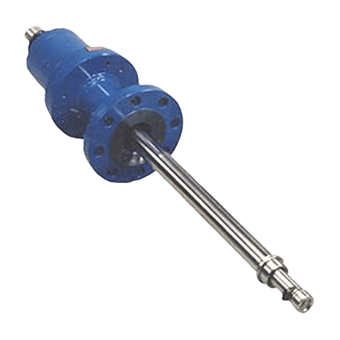

JISKOOT 210P & 210P-HP Pneumatic Heavy Hydrocarbon Probe Sampler
Pneumatically actuated sampler for liquid hydrocarbons up to 8000cSt. Available for 8" to 52" pipelines and in ANSI 150-900 pressure ratings, the 210P is designed for arduous, heavy crude oil environments. This low-maintenance probe can sample up to 120 grabs a minute making it ideal for applications with line-fill between the custody transfer point and sampler.
JISKOOT 210SD Severe Duty Sample Probe
The 210SD line of Sever Duty Liquid Sample Probes are designed for liquid sampling applications where the fluids contain entrained abrasive solids and sediments that would compromise the life span of traditional sampling technologies. With specially selected coatings and seal these perfectly designed for heavy oil applications where sediments are normally found.

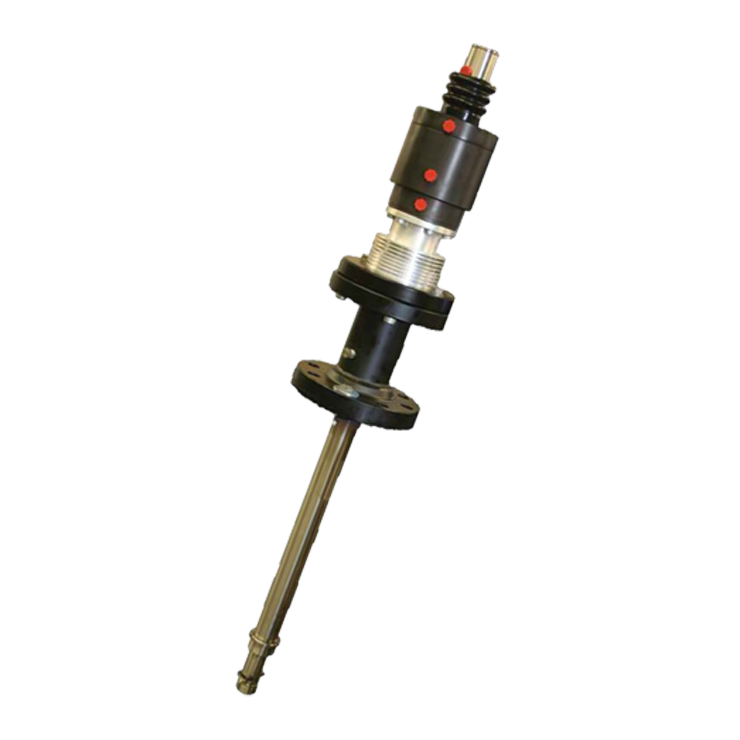

JISKOOT 210HT High Temperature Sample Probe
The 210HT, line of high temperature Liquid Sample Probes are designed specifically for liquid sampling applications where the process fluid temperatures normally run above 100°C (212°F). Whether it is a Steam Assisted Gravity Drain (SAGD) application or sampling directly off of a high temperature process, the 210HT Cell Sampler can meet the most challenging of high temperature sampling needs.
JISKOOT 710EL-MC Probe Electrically Driven In-Line Sample Extractor
The 710EL-MC Probe is a low pressure sample extraction device suitable for use as part of an in-line sampling system. Powered by an integrated motor, it is ideal for remote applications where an air supply is unavailable.
.png)

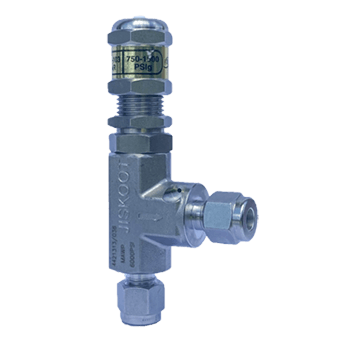

JISKOOT SCV Sampling Check Valve
Designed specifically for use with JISKOOT sampling and blending products the JISKOOT SCV Sampling Check Valve has been created to perform in the most challenging liquid sampling applications. From conventional crude oils and refined products to sediment laden heavy oils, peak performance is assured in conditions where traditional sampling check valves prove ineffective.
JISKOOT Probe Sampler Weatherproof Housing
Designed specifically for use with JISKOOT sampling and blending products the JISKOOT SCV Sampling Check Valve has been created to perform in the most challenging liquid sampling applications. From conventional crude oils and refined products to sediment laden heavy oils, peak performance is assured in conditions where traditional sampling check valves prove ineffective.
JISKOOT Hydraulic Sample Probe Extractor
Hydraulic extractor designed for the safe insertion and removal of sample probes under process pressure to avoid probe damage.
