JISKOOT Liquid Cell Samplers

JISKOOT 210SD Severe Duty Cell Sampler

The 210SD line of Sever Duty Liquid Cell Samplers are designed for liquid sampling applications where the fluids contain entrained abrasive solids and sediments that would compromise the life span of traditional sampling technologies.  With specially selected coatings and seal these  perfectly designed for heavy oil applications where sediments are normally found.

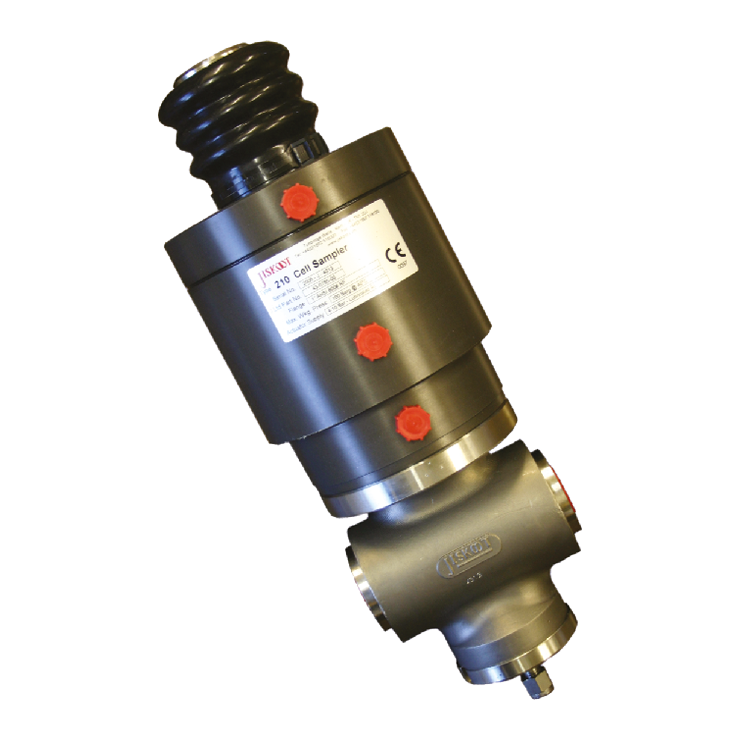

JISKOOT 210P & 210P-HP Pneumatic Hydrocarbon Cell Sampler

Low maintenance, pneumatically actuated sampler for liquid hydrocarbons up to 8000cSt and available in ANSI 150-1500 pressure ratings. The 210P is designed for arduous, heavy crude oil environments. The 210P can sample at up to 120 grabs a minute making it ideal for applications with line-fill between the custody transfer point and sampler.

JISKOOT 210EH & 210EH-HP Hydraulic Hydrocarbon Cell Sampler

Hydraulically actuated sampler for liquid hydrocarbons up to 8000cSt and installations with no plant air. The 210EH can be supplied with a self-contained "power-pack" and is available in ANSI 150-1500 pressure ratings. It is suitable for arduous, heavy crude oil environments.

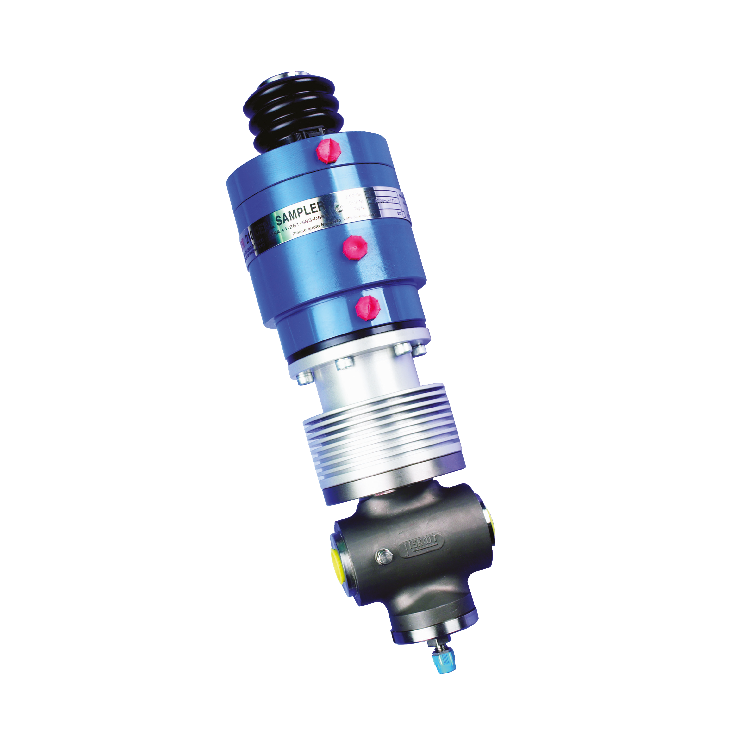

JISKOOT 210HT High Temperature Cell Sampler

The 210HT, line of high temperature Liquid Cell Samplers are designed specifically for liquid sampling applications where the process fluid temperatures normally run above 100°C (212°F).  Whether it is a Steam Assisted Gravity Drain (SAGD) application or sampling directly off of a high temperature process, the 210HT Cell Sampler can meet the most challenging of high temperature sampling needs.

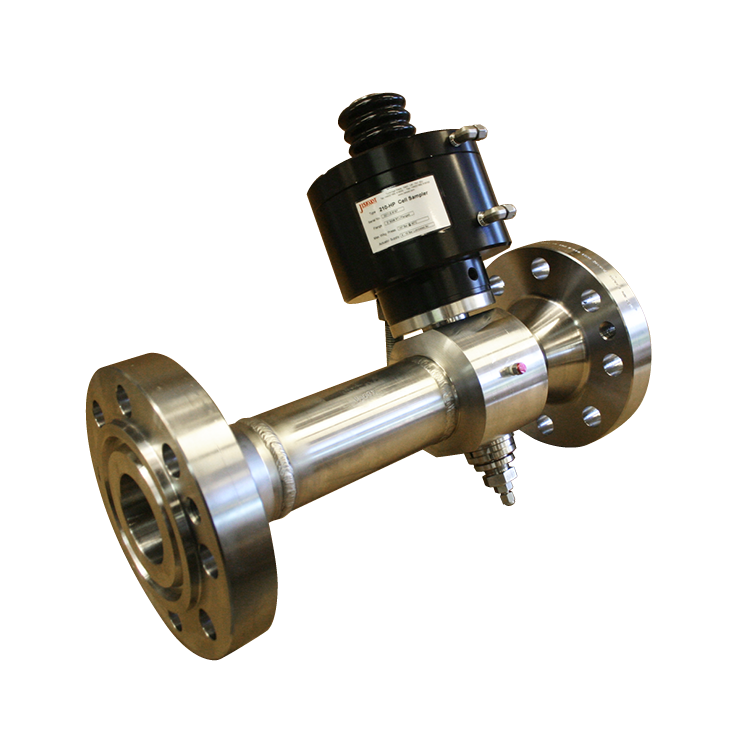

JISKOOT 210 Hybrid Cell Sampler

The 210 Hybrid Cell Samplers are designed for liquid sampling applications where the sampler needs to be mounted between flanges, in line sizes from 2 inches to 6 inches.  If additional line mixing is required, an optional integrated static mixer can be added to ensure that the process fluid is homogeneous at the point of sample.

JISKOOT 710EL-MC Cell Electrically Driven Flow-Through Sample Extractor

The 710EL-MC Cell is a low-pressure flowthrough sample extraction device suitable for use as part of an externally pumped bypass or a small diameter pipeline. Powered by an integrated motor, it is ideal as part of a fast-loop sampling system or a fiscal quality loop where an air supply is unavailable.
