CLIF MOCK Liquid Probe Samplers

Overview

LIQUID PROBE SAMPLERS

The CLIF MOCK True Cut sampling technologies have been a workhorse of the crude oil sampling world since its inception 60 years ago. The CLIF MOCK True Cut technologies are used for sampling conventional crude oils, condensates, and refined products that are below viscosities of 350 cSt and gauge pressures below 1,500 psi. A selection of accessories can be used with the sampling technologies to help with the operation of the probe and the insertion of the probe into smaller line sizes.

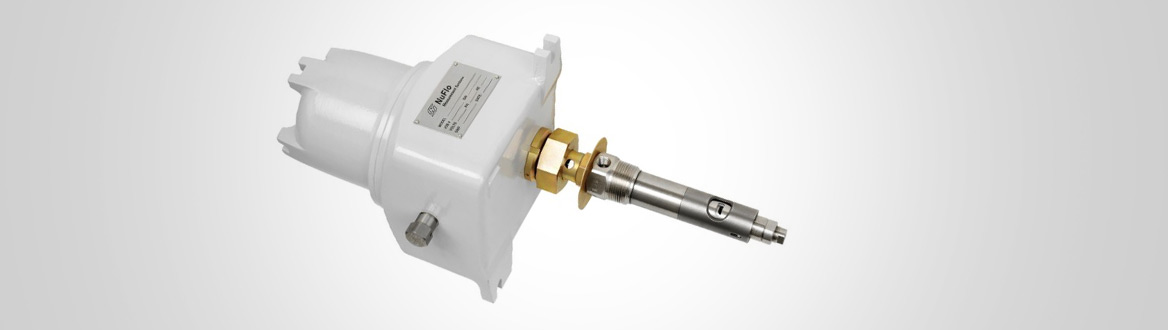

 CLIF MOCK True Cut CD Series

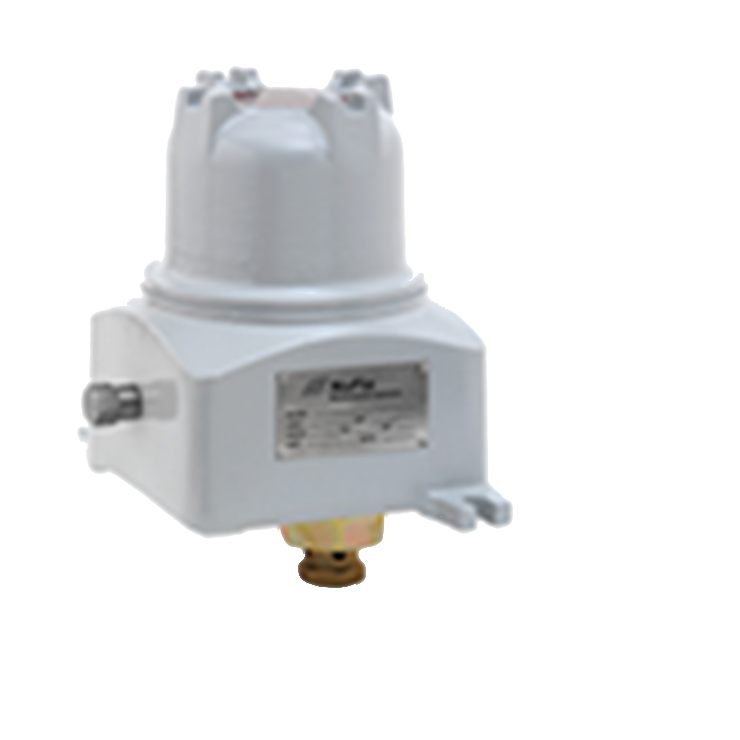

CLIF MOCK True Cut CD Series Actuator and Sample Controller

CLIF MOCK True Cut CD series actuator and sample controller controls the sampling frequency of C-Series sample probes. CLIF MOCK True Cut CD series actuator and sample controllers are equipped with an internal motor that rotates the sample probe between sample grabs. This design allows the CLIF MOCK True Cut C-Series sample probe to take a sample with each 180-degree rotation. While the controller can be purchased without a sample probe, it is useful only when paired with a CLIF MOCK True Cut C-Series sample probe. The controllers are easily attached to the sample probe in the pipeline and require no other mounting hardware. CLIF MOCK True Cut CD series actuator and sample controllers are available in four different configurations for controlling the sampling process with pulse counts, timing, or pacing from a computer or PLC. One configuration can be used to trigger an alarm to signal a loss of power, loss of input signal or motor failure.

 CLIF MOCK True Cut C Series Sample Probe

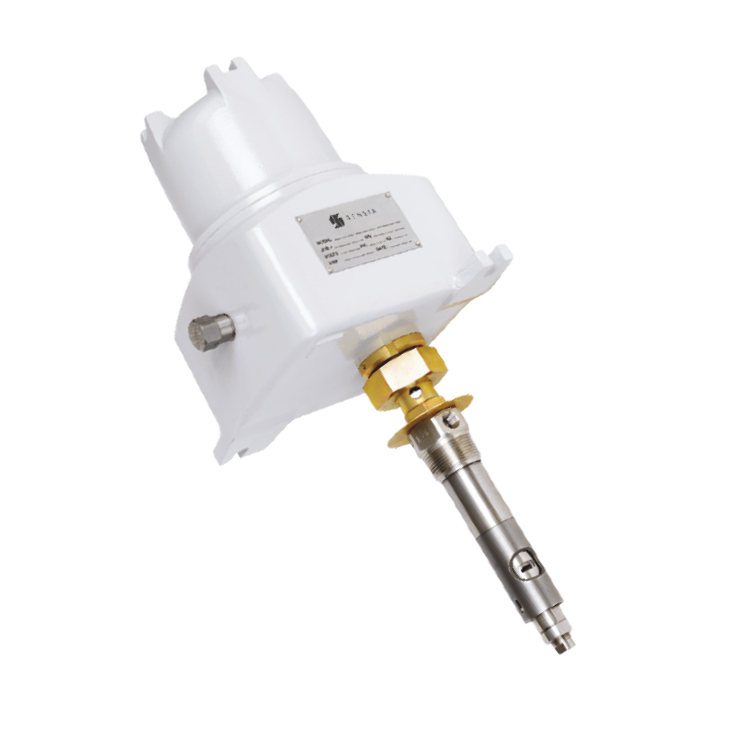

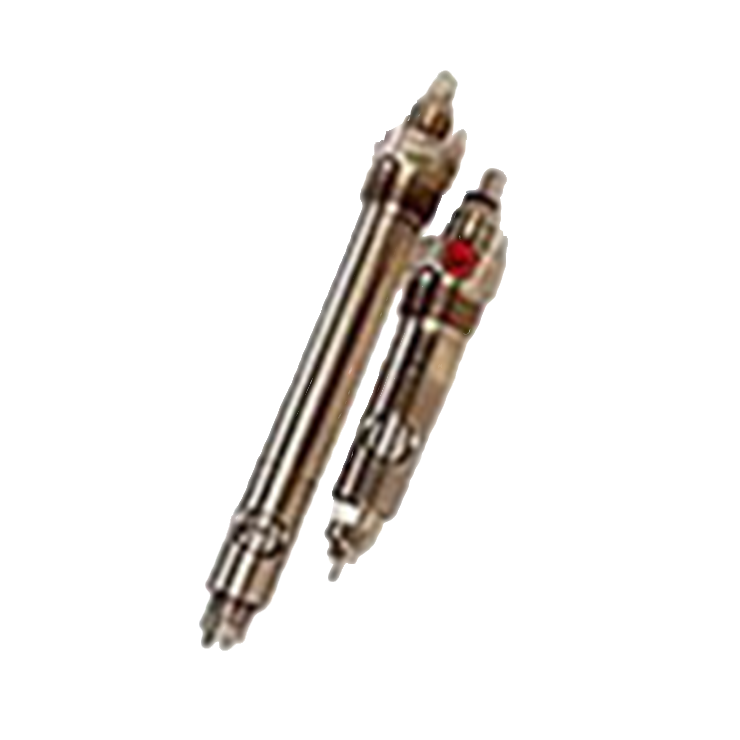

CLIF MOCK True Cut C-Series Sample Probe

The CLIF MOCK True Cut C-Series sample probe isokinetic inline sampling probe requires neither air nor hydraulics to capture samples. Rather, the probe is actuated by an electrical pulse from a controller, and uses existing pipeline pressure to fill the sample chamber with product. When the probe is actuated, a sample chamber opens, allowing process fluid to flow through the chamber. As the window rotates, the sample is captured in its natural state and fed by pipeline pressure to a receptacle. By ensuring that the process fluid is well-mixed and homogeneous prior to sampling, and using a sampling process that collects the sample directly from the flow stream without changing the linear velocity or direction of flow, the customer is assured of obtaining a representative sample.

INSTALLATION ACCESSORIES

When a pipeline is properly fitted with a 2" ball valve and a U-22 union adapter, the CLIF MOCK True Cut C-Series sample probe can be safely installed in a pipeline or removed from a pipeline, even under pressure with an A-3 sample probe retriever. A pressure equalizing valve (PEV) and/or LA-22 line adapter may also be required in a C-Series probe installation.

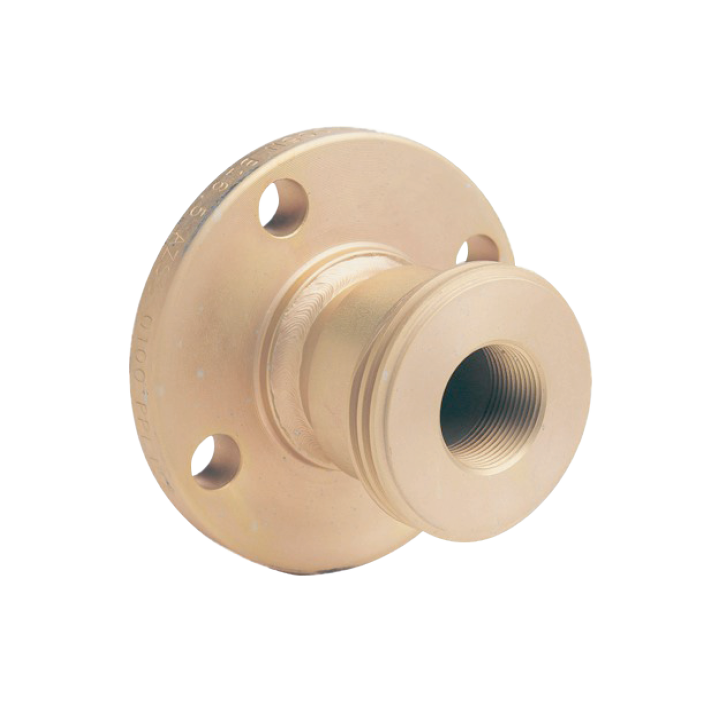

Clif Mock U-22 Adaptor

The Clif Mock C-Series Probes can easily be also can be used with a selection of accessories to help with the operation of the probe, the insertion of the probe into smaller line sizes.

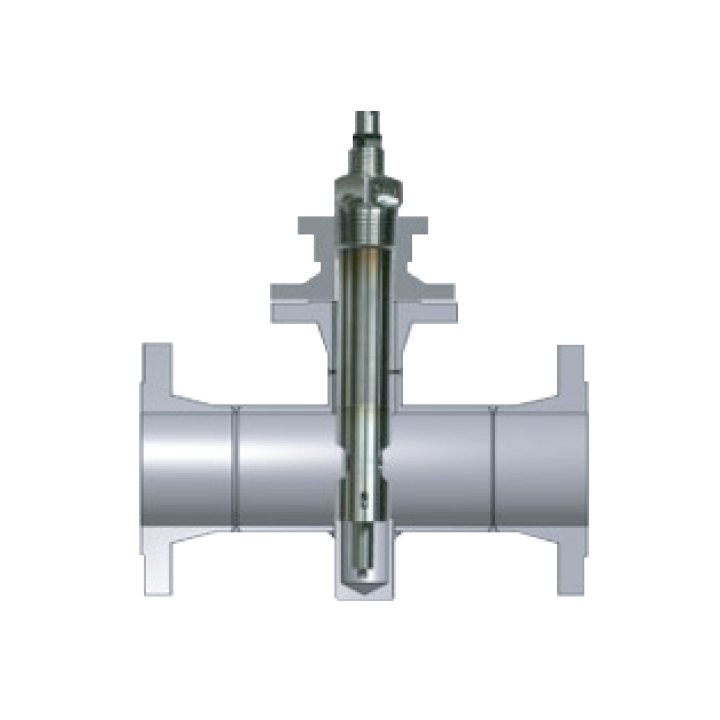

Clif Mock LA Line Adaptor

The Clif Mock C-Series Probes also can be used with a selection of accessories to help with the operation of the probe, the insertion of the probe into smaller line sizes.
