| SAMPLE RECEIVERS |
 |

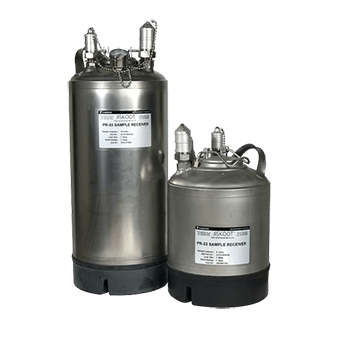

JISKOOT PR Sample Receivers
The PR-23 and PR-53 are 9 litre and 18 litre (2.5 and 5 USG) portable sample receivers designed for the collection of crude oil and refined product batch samples. They have no dead volume and include a pressure gauge, relief valve and a facility for a customs seal. The PR range has integral mixing pipe-work and keyed connectors for use with an MS-53 laboratory mixer to ensure the homogeneity of analysis samples.
|
 |

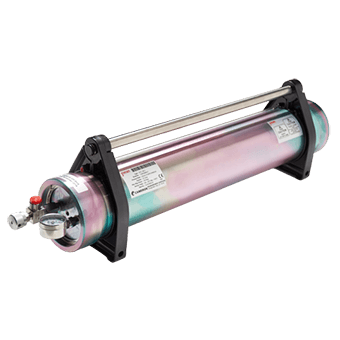

JISKOOT Constant Pressure Sample Receivers
The CPC is a compact, portable constant pressure sample receiver for the receipt, storage and transportation of liquid and gaseous hydrocarbon samples. It is designed to be pre-charged with inert gas to maintain the sample at process pressure for analysis. The CPC can be supplied with external volume indicators, magnetic sensors and internal mixing balls.
|
 |

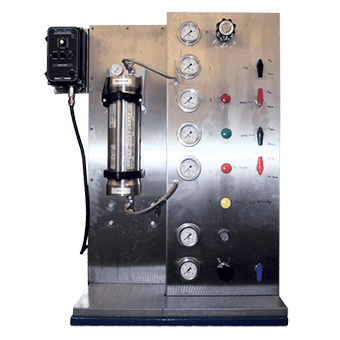

JISKOOT ShearMix Sample Receiver Mixing Station
The Jiskoot ShearMix station is designed to fully homogenise the contents of a constant pressure sample receiver, at the sample collection line pressure to ensure analysis sub-sample homogeneity andretention of light-ends.
|
 |
JISKOOT Sample Receiver Weighing System
The CanWeigh is an intrinsically safe electronic weighing system designed to measure the mass of samples collected in up to two sample receivers. This measured mass is compared with the expected mass of sample by the control system during the batch and can be used to provide the performance factor measurements required by the sampling standards.
|
 |

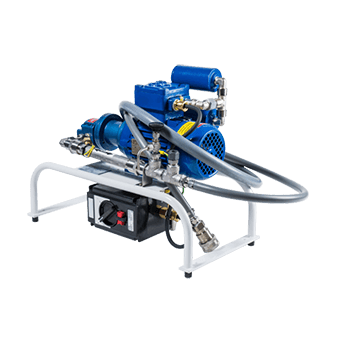

JISKOOT MS53 Laboratory Mixer
In a sample receiver the heavier components, such as water, separate. To ensure that the sample withdrawn for analysis is representative the contents must be thoroughly mixed. An MS-53 is connected to a sample receiver and samples may be drawn from a takeoff valve or through an optional septum. The MS-53 mixer can also be supplied in a heated enclosure for temperature critical oils.
|
 |

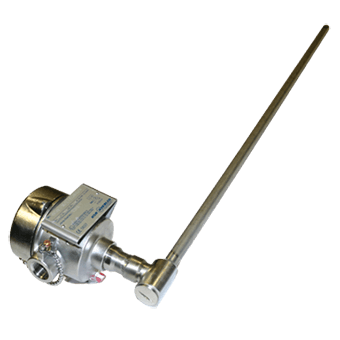

JISKOOT CPC Volume Sensor
The CPC Volume Sensor is a non-invasive sensor allowing a sampler controller, such as a JISKOOT InSpec controller, to continuously monitor the filling of a constant pressure sample receiver (CPC). This fulfils the requirements of the ISO 3171, ASTM D 4177, API 8.2 and IP 6.2 sampling standards.
|
